Home > All Collections > Marine Propulsion System > Marine Engine > SINO Marine Engine > New 20.6kW 4-Stroke High-Speed 380J-3 Marine Diesel Inboard Engine with Gearbox for Yacht and Boat Marine Use
  • New 20.6kW 4-Stroke High-Speed 380J-3 Marine Diesel Inboard Engine with Gearbox for Yacht and Boat Marine Use
  • New 20.6kW 4-Stroke High-Speed 380J-3 Marine Diesel Inboard Engine with Gearbox for Yacht and Boat Marine Use
  • New 20.6kW 4-Stroke High-Speed 380J-3 Marine Diesel Inboard Engine with Gearbox for Yacht and Boat Marine Use
  • New 20.6kW 4-Stroke High-Speed 380J-3 Marine Diesel Inboard Engine with Gearbox for Yacht and Boat Marine Use
  • New 20.6kW 4-Stroke High-Speed 380J-3 Marine Diesel Inboard Engine with Gearbox for Yacht and Boat Marine Use

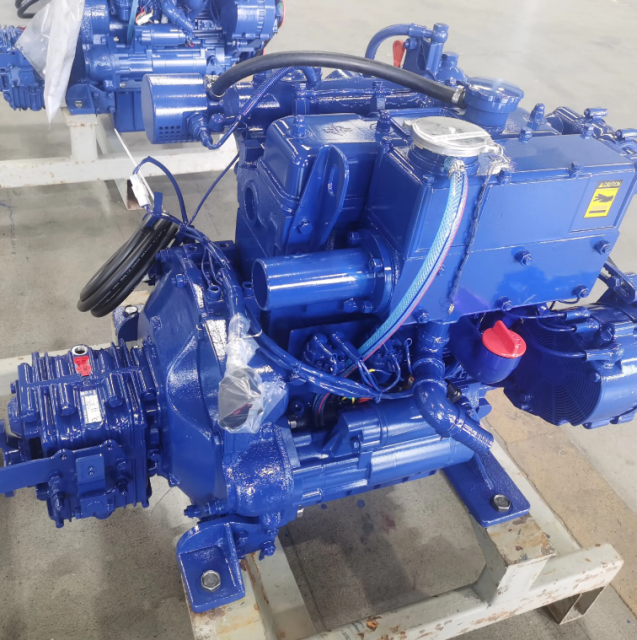

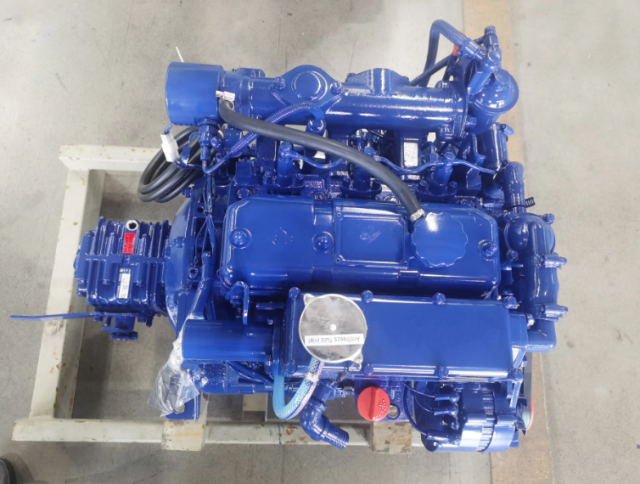

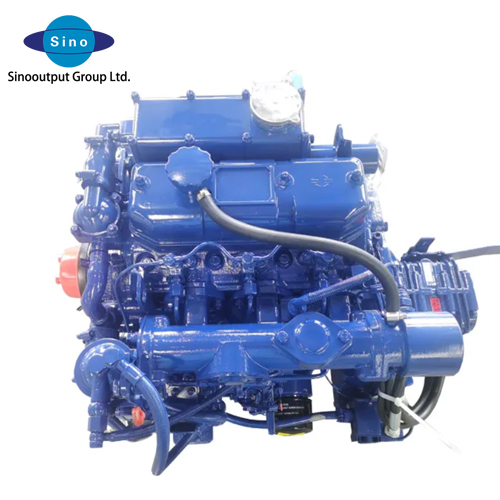

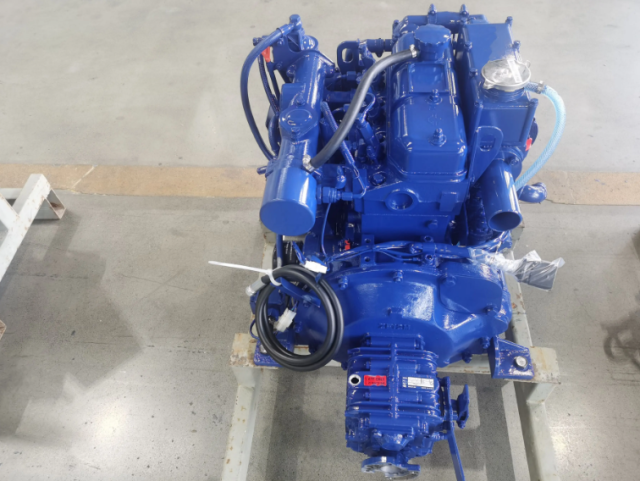

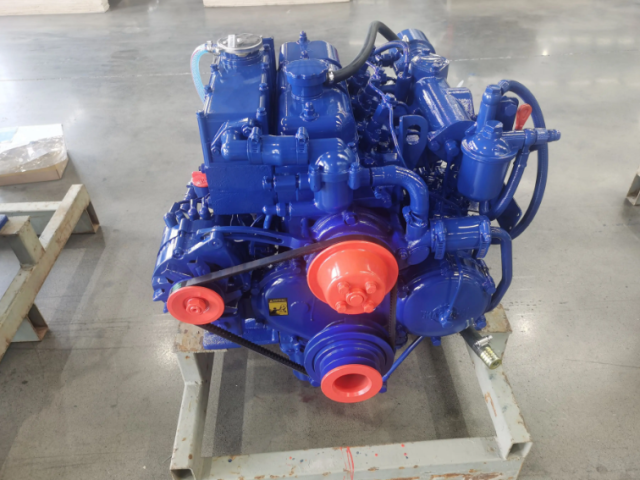

New 20.6kW 4-Stroke High-Speed 380J-3 Marine Diesel Inboard Engine with Gearbox for Yacht and Boat Marine Use

The 20.6kW 4-Stroke High-Speed 380J-3 Marine Diesel Inboard Engine is designed to deliver reliable and efficient propulsion for yachts and boats. Built with advanced 4-stroke technology, this engine provides superior fuel efficiency and enhanced durability for smooth, long-lasting performance on the water. The model includes a high-quality gearbox, ensuring precise control of your vessel’s speed and direction. Ideal for marine environments, this engine is compact, powerful, and meets all necessary industry standards for safety and performance.
Get A Quote
  • New 20.6kW 4-Stroke High-Speed 380J-3 Marine Diesel Inboard Engine with Gearbox for Yacht and Boat Marine Use
  • New 20.6kW 4-Stroke High-Speed 380J-3 Marine Diesel Inboard Engine with Gearbox for Yacht and Boat Marine Use
  • New 20.6kW 4-Stroke High-Speed 380J-3 Marine Diesel Inboard Engine with Gearbox for Yacht and Boat Marine Use
  • New 20.6kW 4-Stroke High-Speed 380J-3 Marine Diesel Inboard Engine with Gearbox for Yacht and Boat Marine Use
  • New 20.6kW 4-Stroke High-Speed 380J-3 Marine Diesel Inboard Engine with Gearbox for Yacht and Boat Marine Use

Desciption

Product Overview
High Speed Diesel Engine
The marine diesel engine set, type 380J-3 is based on 380C diesel engine and mainly adapted for lifeboat Propulsion conforming to the latest requirements including China Classification society "Rules and regulations for construction and classification of sea-going for steel ships" , IMO "Testing of life-Saving appliance" Resolution MSC.81(70), SOLAS 1974 and relating amendments.

FEATURES AT A GLANCE
(1) Fuel filter
(2) Breather
(3) Fuel injector
(4) Injection pump
(5) Inlet manifold
(6) Outlet cock
(7) Lube oil dipstick
(8) Tachometer sensor
(9) Gearbox dipstick
(10) Expansion tanker cap
(11) Fresh water pump
(12) Lube oil filter
(13) Gearbox
(14) Gearbox oil screw
(15) Alternator
(16) Expansion tanker
(17) Lube filling cap
(18) Exhaust body
(19) Lube cooler
(20) Water inlet pipe
(21) Water outlet pipe
(22) Starting motor
(23) Gearbox handle

Right elevation
Left elevation
Front elevation
