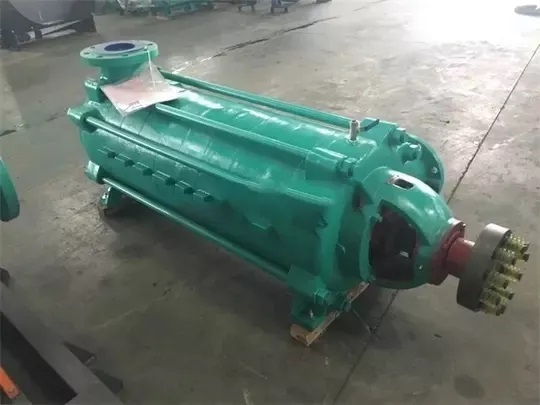

Horizontal Mjultistage Centrifugal Pump For Hot Water, Oil etc High Efficiency And Low Noise

No.00721
  • Horizontal Mjultistage Centrifugal Pump For Hot Water, Oil etc High Efficiency And Low Noise
  • Horizontal Mjultistage Centrifugal Pump For Hot Water, Oil etc High Efficiency And Low Noise
  • Horizontal Mjultistage Centrifugal Pump For Hot Water, Oil etc High Efficiency And Low Noise
  • Horizontal Mjultistage Centrifugal Pump For Hot Water, Oil etc High Efficiency And Low Noise
Desciption

The horizontal multi-stage pump is a single-suction multi-stage segmented centrifugal pump, which is used to transport clean water or other liquids with physical and chemical properties similar to water. The temperature of the liquid should not exceed 80 °C. It has the characteristics of high efficiency, wide performance range, safe and stable operation, low noise, long life, convenient installation and maintenance, etc. It can also be used to transport hot water, oil, corrosive or abrasive media by changing the material of the pump flow parts, the sealing form and increasing the cooling system.
Mainly used for industrial and urban water supply and drainage, high-rise building pressurized water supply, garden sprinkler irrigation, fire pressurization, long-distance water supply, heating, bathroom and other cold and warm water circulation pressurization and equipment matching, especially suitable for small boiler water supply. Using computer design and optimization, the company has strong technical force, rich production experience and perfect testing methods, so as to ensure stable and reliable product quality.




Structure diagram


Product application





Advantages
1. Advanced hydraulic model, high efficiency and wide performance range.
2. The pump runs smoothly and has low noise.
3. The shaft seal adopts soft packing seal or mechanical seal, the seal is safe and reliable, the structure is simple, and the maintenance is convenient and quick.
4. The shaft is a fully sealed structure, which ensures no contact with the medium, no rust, and long service life.


Specification
Flow (m³/h) 3.7-1350 Head (m) 49-1800
Caliber  (φ) 50~200 Power (kw) 3-1120
Rotating speed (r/min) 1450-2950 Efficiency 32%-84%
Pump weight (kg) 78-3750 Temperature range ≤105℃
Work pressure
≤3.0Mpa



Sinooutput—— Your shipbuilding one stop spare parts supplier and consultant.
Sinooutput had serviced more than 398 shipyard oversea, the ship types includes cargo ship, container ship, bulk carrier, fishing boat, oil tanker, LCT, Ro-ro and sand suction ships, tug boat, ice-breaker, militray boats and all kinds of speed yachts.
If you have any questions and inquiries about our products, please add WhatsApp 008613564780885, or leave us a message. We will provide you with professional consulation and catalogs.
